Elecro Generation 2 122 kW Titanium Heat Exchanger

Details

The Elecro Generation 2 Heat Exchanger has been designed to allow the installation engineers to select which way to plumb the primary and secondary water to achieve maximum thermal gain. This is achieved by rotating the primary (hot) flow in an opposing direction to the secondary (pool) water.

Features :

Robust, durable construction
316 stainless steel shell with special polymide fittings

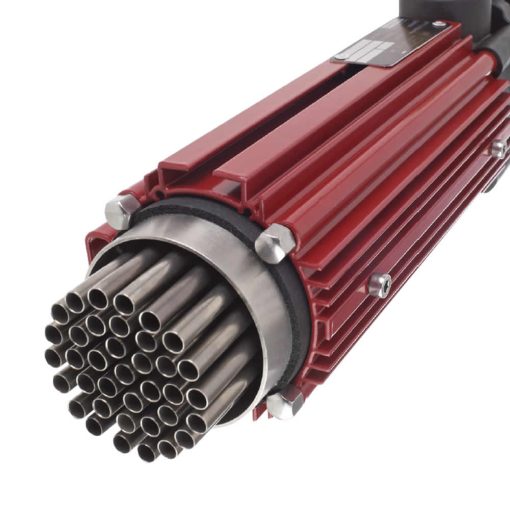

38 piece Titanium internal tube bundle
For indoor or outdoor pools
Thermostat pocket
Solvent weld unions for connection to rigid pipe
1.5″ connections
Suitable for salt chlorinated and solar heated pools

Technical Specifications

Code	Power Output	Volume m3	Manual	Datasheet
G2-HE-122T	122W (416k BTU)	0.037	Download	Download

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar	AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
122 kW	3.8	0.183	19	0.126	33	43	68	75	93	108	120
122 kW	4.2	0.200	19	0.126	36	48	70	89	108	126	143
122 kW	4.6	0.211	19	0.126	38	53	73	95	116	137	156

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar
122 kW	3.8	0.183	19	0.126
122 kW	4.2	0.200	19	0.126
122 kW	4.6	0.211	19	0.126

AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
33	43	68	75	93	108	120
36	48	70	89	108	126	143
38	53	73	95	116	137	156

Title	Range	Discount
Sale / Bulk discount	1	20% £727.29
Sale / Bulk discount	2 - 5	25% £681.83
Sale / Bulk discount	6 - 99	30% £636.37

Title

Range

Discount

Sale / Bulk discount

20%

Sale / Bulk discount

2 - 5

25%

Sale / Bulk discount

6 - 99

30%

Description

Details

Features :

Robust, durable construction
316 stainless steel shell with special polymide fittings
38 piece Titanium internal tube bundle
For indoor or outdoor pools
Thermostat pocket
Solvent weld unions for connection to rigid pipe
1.5″ connections
Suitable for salt chlorinated and solar heated pools

Technical Specifications

Code	Power Output	Volume m3	Manual	Datasheet
G2-HE-122T	122W (416k BTU)	0.037	Download	Download

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar	AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
122 kW	3.8	0.183	19	0.126	33	43	68	75	93	108	120
122 kW	4.2	0.200	19	0.126	36	48	70	89	108	126	143
122 kW	4.6	0.211	19	0.126	38	53	73	95	116	137	156

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar
122 kW	3.8	0.183	19	0.126
122 kW	4.2	0.200	19	0.126
122 kW	4.6	0.211	19	0.126

AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
33	43	68	75	93	108	120
36	48	70	89	108	126	143
38	53	73	95	116	137	156

Please note during extremely busy periods there may be a small additional processing time on this item.

Additional information

Weight	7.6 kg
EAN	5060228677052
SKU	G2-HE-122T
Kilowatts	122kw
Brand	Elecro
