Elecro Generation 2 49 kW Titanium Heat Exchanger

Details

The Elecro Genertation 2 Heat Exchanger has been designed to allow the installation engineers to select which way to plumb the primary and secondary water to achieve maximum thermal gain. This is achieved by rotating the primary (hot) flow in an opposing direction to the secondary (pool) water.

Features :

Robust, durable construction
316 stainless steel shell with special polymide fittings

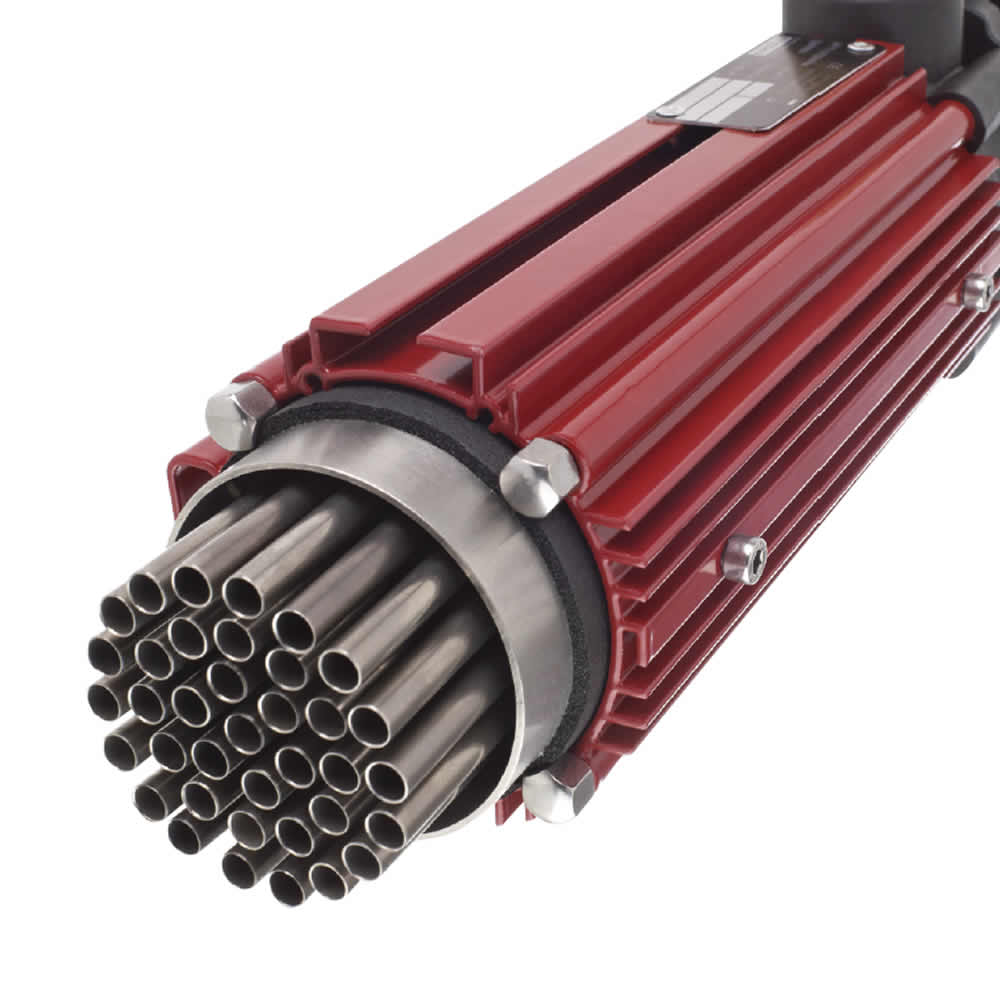

38 piece Titanium internal tube bundle
For indoor or outdoor pools
Thermostat pocket
Solvent weld unions for connection to rigid pipe
1.5″ connections
Suitable for salt chlorinated and solar heated pools

Technical Specifications

Code	Power Output	Volume m3	Manual	Datasheet
G2-HE-49T	49kW (167k BTU)	0.021	Download	Download

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar	AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
49 kW	1.6	0.077	16	0.092	13	18	25	38	41	50	56
49 kW	1.8	0.083	16	0.092	15	20	28	43	45	55	62
49 kW	2.2	0.093	17	0.098	16	22	33	44	52	64	73

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar
49 kW	1.6	0.077	16	0.092
49 kW	1.8	0.083	16	0.092
49 kW	2.2	0.093	17	0.098

AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
13	18	25	38	41	50	56
15	20	28	43	45	55	62
16	22	33	44	52	64	73

Title	Range	Discount
Sale / Bulk discount	1	20% £437.48
Sale / Bulk discount	2 - 5	25% £410.14
Sale / Bulk discount	6 - 99	30% £382.79

Title

Range

Discount

Sale / Bulk discount

20%

Sale / Bulk discount

2 - 5

25%

Sale / Bulk discount

6 - 99

30%

Description

Details

Features :

Robust, durable construction
316 stainless steel shell with special polymide fittings
38 piece Titanium internal tube bundle
For indoor or outdoor pools
Thermostat pocket
Solvent weld unions for connection to rigid pipe
1.5″ connections
Suitable for salt chlorinated and solar heated pools

Technical Specifications

Code	Power Output	Volume m3	Manual	Datasheet
G2-HE-49T	49kW (167k BTU)	0.021	Download	Download

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar	AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
49 kW	1.6	0.077	16	0.092	13	18	25	38	41	50	56
49 kW	1.8	0.083	16	0.092	15	20	28	43	45	55	62
49 kW	2.2	0.093	17	0.098	16	22	33	44	52	64	73

Standard Output	Primary Flow m 3/h	Primary Pressure Loss Bar	Secondary Flow m 3/h	Secondary Pressure Loss Bar
49 kW	1.6	0.077	16	0.092
49 kW	1.8	0.083	16	0.092
49 kW	2.2	0.093	17	0.098

AT 15oC kW	AT 20oC kW	AT 30oC kW	AT 40oC kW	AT 50oC kW	AT 60oC kW	AT 70oC kW
13	18	25	38	41	50	56
15	20	28	43	45	55	62
16	22	33	44	52	64	73

Please note during extremely busy periods there may be a small additional processing time on this item.

Additional information

Weight	5 kg
EAN	5060228676895
SKU	G2-HE-49T
Kilowatts	49kw
Brand	Elecro

1 review for Elecro Generation 2 49 kW Titanium Heat Exchanger

Keiran – 10th February 2023

Exactly as expected
