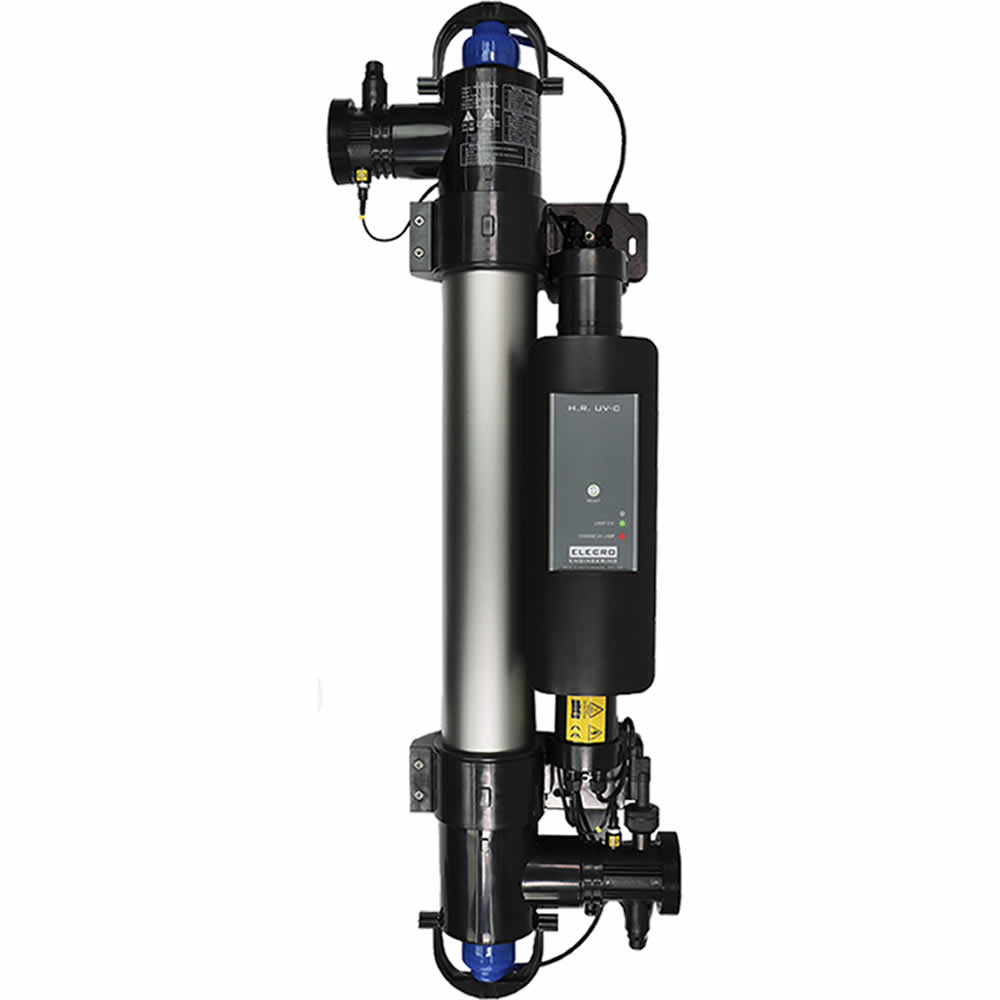

With the H.R.UV-C, up to 95% reflectivity is achieved (if you compare this to stainless steel reactors only 20 to 28% reflection is typically achieved).
The H.R.UV-C is 100% sea and saltwater compatible, unlike stainless steel units that suffer corrosion issues.
The super reflective properties of the Elecro H.R.UV-C optimises the UV-C radiation and dramatically increases the performance. The inside surface casing is extremely repellent and therefore self-cleaning. Intelligent electronics indicate when the lamps are not producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally.
- Unrivalled reflection – up to 95% reflection is achieved drastically improving the efficiency
- Compatible with and compliments all traditional treatment methods including; Chlorine, Bromine, Active Oxygen / Hydrogen Peroxide and Salt electrolysis
- Narrow and extended chamber ensures maximum exposure to the powerful UV-C
- Long lamp life up to 9,000 hours
- Easy to use and install, can be retro-fitted to any existing pool system.
- A self-cleaning system, reducing the need for maintenance
- Intelligent lamp life indicator – signals when the lamps are no longer producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally
- Supplied with T-Piece and flowswitch
| Voltage and Frequency | 220 ~ 240 Volts 50/60Hz or 110 ~ 120 Volts 50/60Hz |
| Maximum operating pressure | 3 Bar |
| Max Power Consumption | Single Tube: 4W Double Tube: 128W |
| Lamp | Low pressure / High output |
| Lamp Life | Up to 9,000 hours |

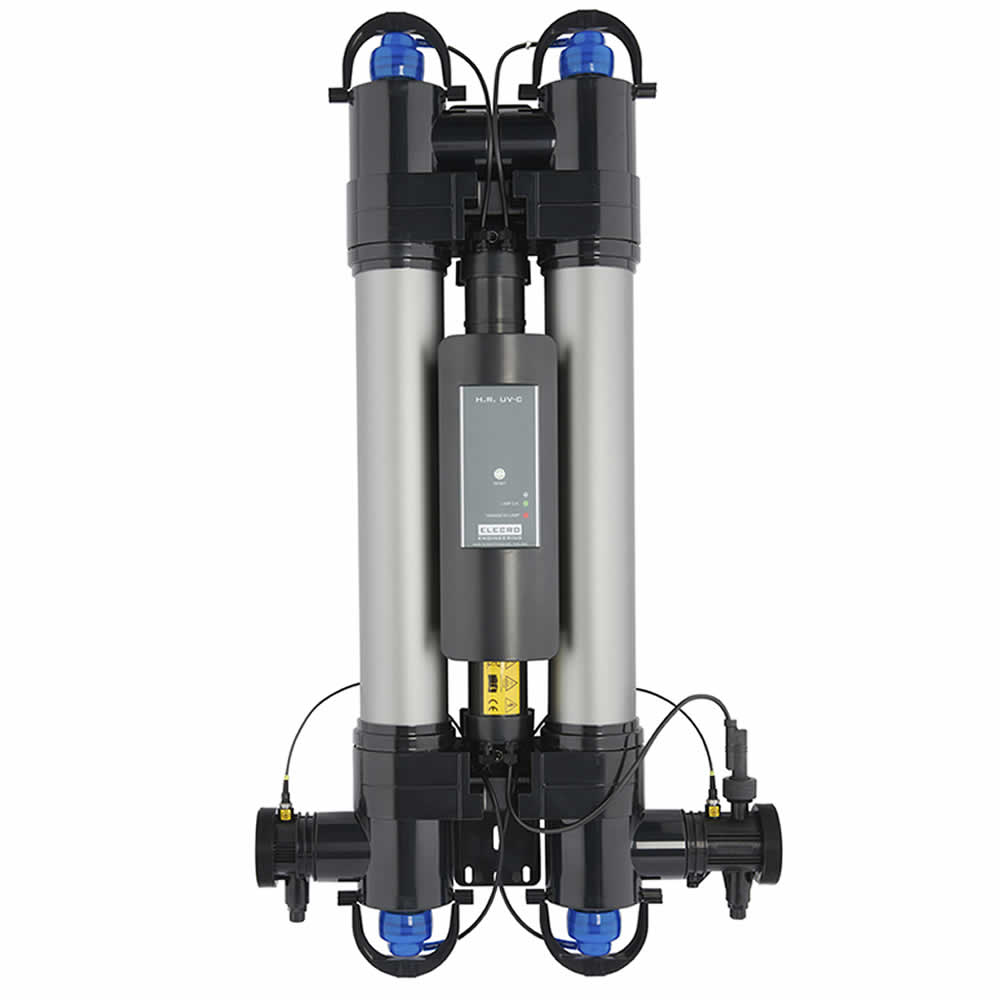

| Maximum Flow Rate | Single Tube: 14m³/h Twin Tube: 28m³/h |
| Dosing Rate | 30mj/cm² at maximum flow rate |
| IP Rating | 65 |
| Water Connections | ABS Solvent weld unions 2″/63mm. Supplied with reducers for 1 1/2″ or 50mm |
| Salt Water | 100% Sea and Salt Water compatible |
| Approvals | CE Approved |
