Description

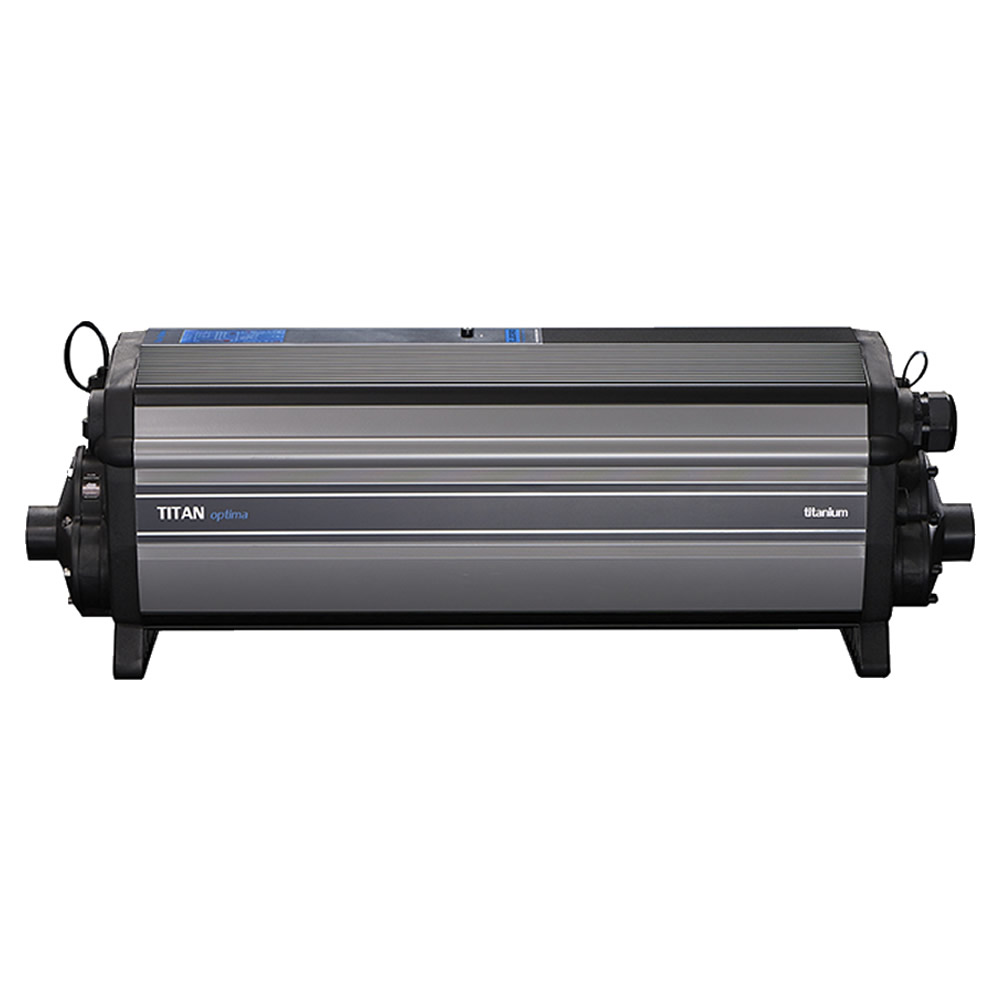

Reliable accurate and efficient, the Titan Optima fully titanium heater is top of the range and comes with a touchscreen display. It is the ideal choice for a longlasting heater for commercial pools. The design makes it highly robust and durable. 120kW model Easy installation, fully equipped and prewired Robust, durable construction Ultrareliable flow switch allows safe operation Supplied with temperature thermostat and overheating sensor Compact, durable design Touchscreen control with softstart for power supply protection Titanium flow tubes and titanium heating elements Can be floor or vertically wall mounted Vortex, long life, stay clean heating element technology 100 efficiency throughout the product life Silent operation Technical Specifications Control Type Digital Power Type 3 Phase Power Output 120kW Amp 174 Net Weight 39.1kg Gross Weight 43.8kg Volume 0.28m
Michelle Jaccon Shimabukuro Zanolla –
Ok
Jose Alonso –
For those with a broken LX heater, this element fits perfectly into the holes and is quite easy to fit, just an adjustable spanner will suffice. If your tub stops heating a quick check is to resistance check your element power off, of course it should be somewhere between 1020 ohms between terminals and infinite between each terminal to the casing. Also make sure youve checked the thermostats and the pressure switch on the heater before replacing the element. Thermostats will be closed at normal temps. If youre confident that your circ pump is giving good flow clean your filter feel the water coming out of the outlets inside the tub the quick way to check the pressure switch is to make a small jumper lead to short out the terminals, then run the tub see if it heats up. Replace pressure switch if it does, replace element if it doesnt. Dont run it without a functioning pressure switch as this protects your heating element if the pump is blocked or flow is restricted for some other reason last of all, remember to remove the jumper lead
Mr Triathlon –
very helpful.
Jinx N –
El calentador no funciona.. lo a instalado un especialista y no calienta
Alan Barber –
Fuite eau sur dtecteur niveau eau Blanc Par contre chauffe bien dans sur le. Spa 38
