Description

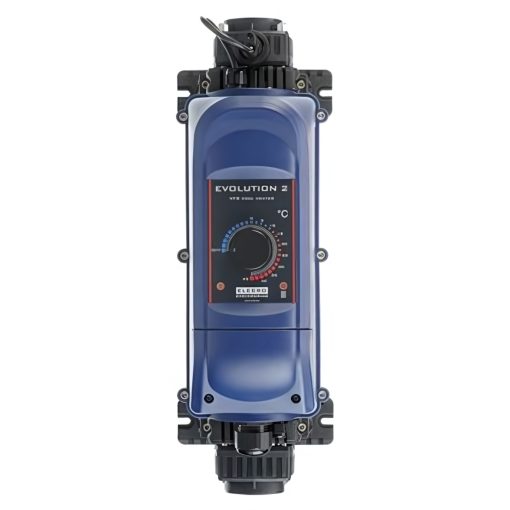

A fully titanium heater by Elecro, the Evolution 2, is the latest and upgraded version of the original Evolution. Boasting 100 efficiency, safety, and above all, reliability, this compact and robust unit will effortlessly heat your pool or spa to your desired temperature. Features Benefits Easy installation, fully equipped and prewired Robust, durable construction Ultrareliable flow switch allows safe operation Temperature thermostat and overheating sensor Compact, durable design Analogue control with 1.2C differential Titanium flow tube and titanium heating element Can be floor or vertically wall mounted Vortex, long life, stay clean heating element technology Silent operation Technical Specifications Control Type Analogue Power Type 3 Phase Power Output 18kW Amp 46 Net Weight 5.4kg Gross Weight 6.6kg Volume 0.059m
Mick Millar –
For those with a broken LX heater, this element fits perfectly into the holes and is quite easy to fit, just an adjustable spanner will suffice. If your tub stops heating a quick check is to resistance check your element power off, of course it should be somewhere between 1020 ohms between terminals and infinite between each terminal to the casing. Also make sure youve checked the thermostats and the pressure switch on the heater before replacing the element. Thermostats will be closed at normal temps. If youre confident that your circ pump is giving good flow clean your filter feel the water coming out of the outlets inside the tub the quick way to check the pressure switch is to make a small jumper lead to short out the terminals, then run the tub see if it heats up. Replace pressure switch if it does, replace element if it doesnt. Dont run it without a functioning pressure switch as this protects your heating element if the pump is blocked or flow is restricted for some other reason last of all, remember to remove the jumper lead
Antonio Almeida –
Fuite eau sur dtecteur niveau eau Blanc Par contre chauffe bien dans sur le. Spa 38
Crazy Granny –
very helpful.
MacChap –
El calentador no funciona.. lo a instalado un especialista y no calienta
Helen Argyrou –
Ok
